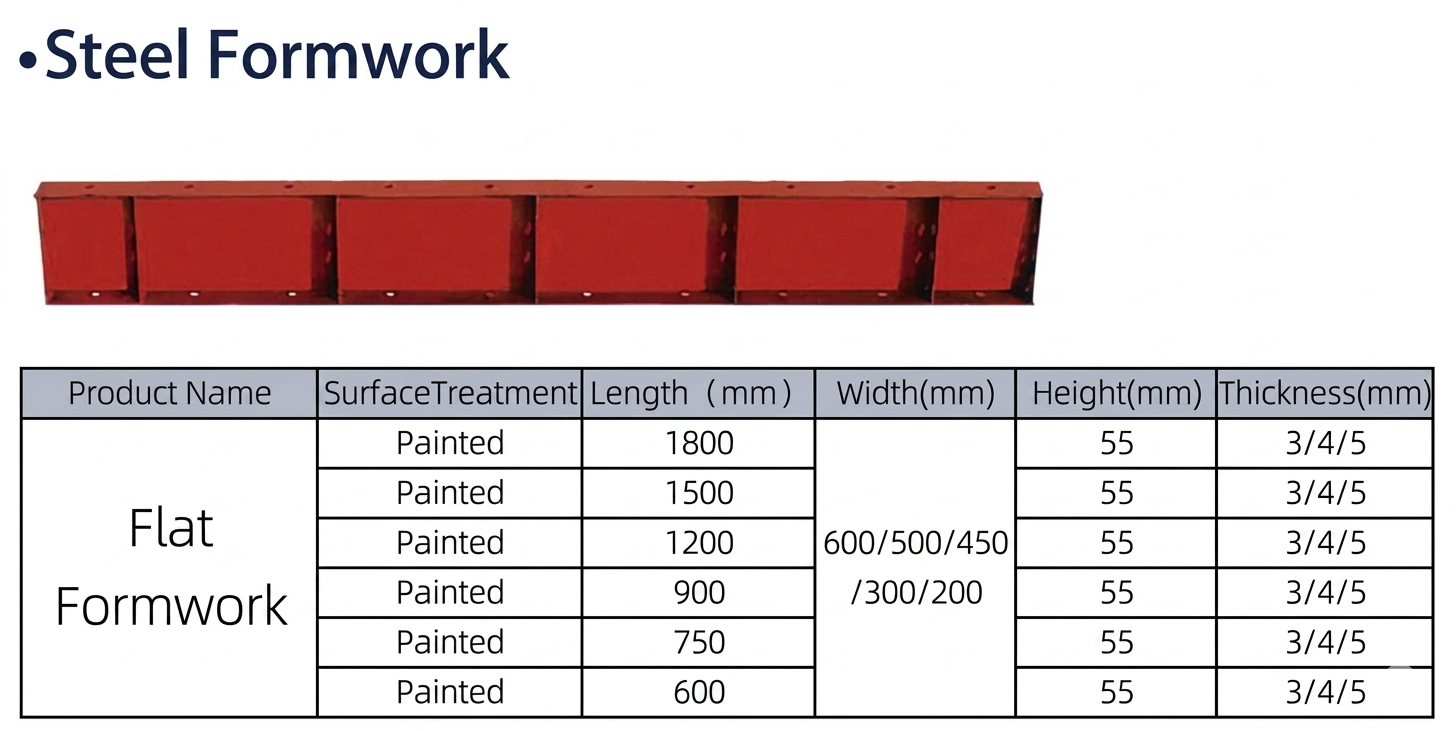

FLAT FORMWORK

• Surface Treatment: Heavy-Duty Protective Paint

• Standard Lengths (mm): 1800 / 1500 / 1200 / 900 / 750 / 600

• Standard Widths (mm): 600 / 500 / 450 / 300 / 200

• Profile Height: 55 mm

• Steel Plate Thickness: Available in 3mm / 4mm / 5mm options depending on structural requirements.

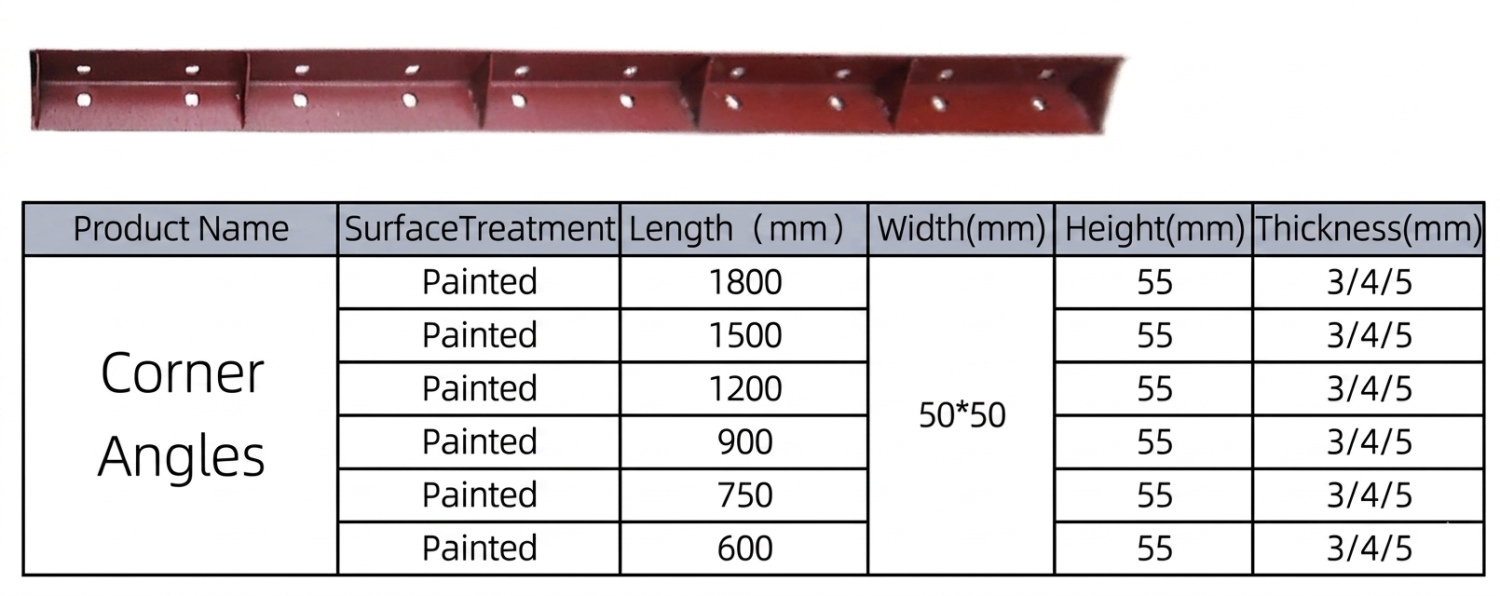

CORNER ANGLES (50*50)

Essential for securing internal and external $90^\circ$ right angles, ensuring sharp, robust corner casting for walls and columns.

• Dimensions: 50 mm × 50 mm L-profile

• Standard Lengths (mm): 1800 / 1500 / 1200 / 900 / 750 / 600

• Profile Height: 55 mm

• Steel Thickness: Available in 3mm / 4mm / 5mm options.

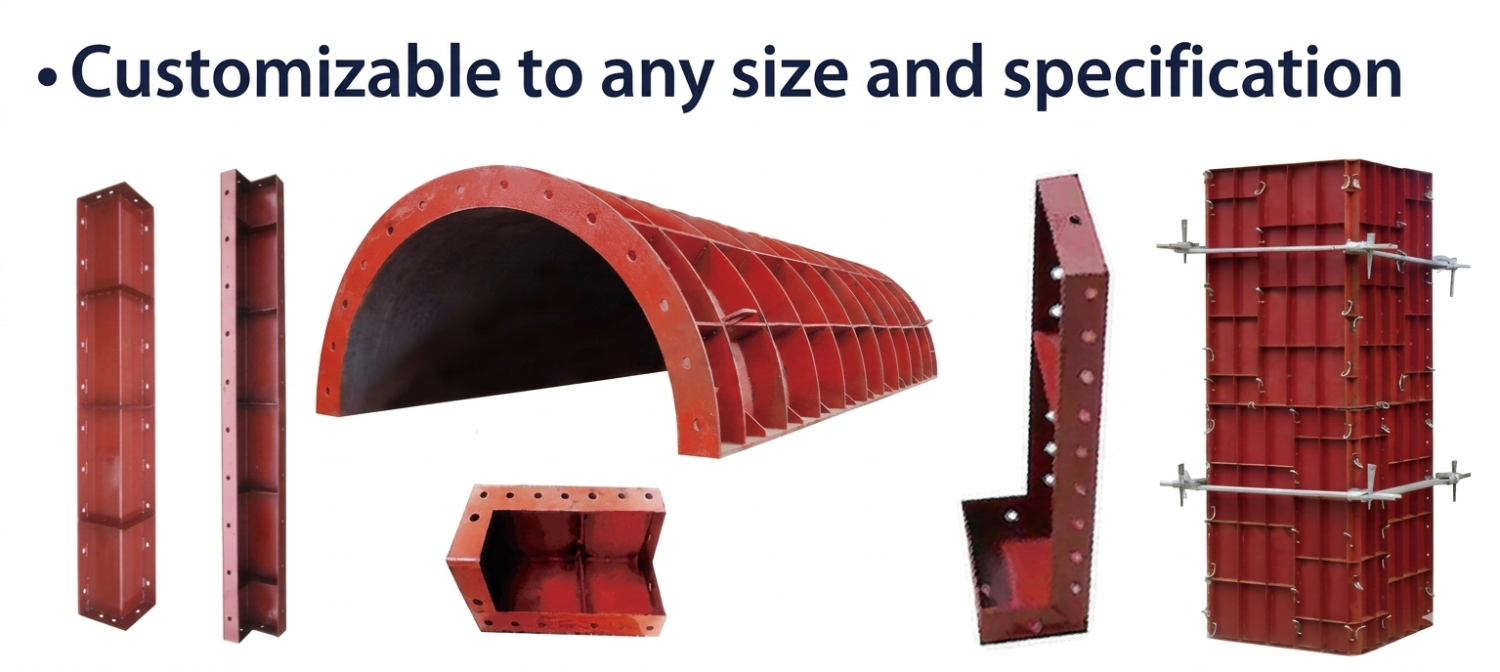

CUSTOM & ROUND FORMWORK

We offer tailor-made structural solutions to fit your exact engineering blueprints.

• Applications: Circular columns, curved retaining walls, tunnel linings, arches, and heavy square column setups with integrated tie-rod supports.

• Capability: Fully customizable to any size, radius, or load capacity specification.
