System Components & Technical Specifications

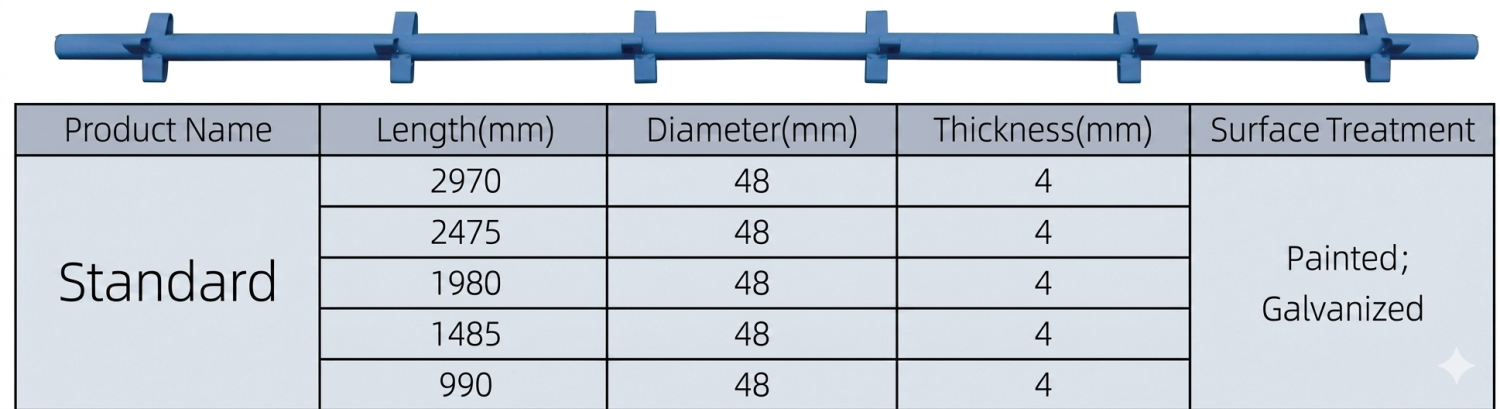

1. Kwik stage Standards (Verticals)

The main vertical load-bearing elements. They feature V-pressing clusters welded at regular intervals (typically 495 mm) to receive horizontal and diagonal components.

• Standard Diameter: 48 mm

• Wall Thickness: 4.0 mm for heavy-duty structural load capacity.

• Available Lengths: 990 mm | 1485 mm | 1980 mm | 2475 mm | 2970 mm

2. Kwikstage Ledgers (Horizontals)

Horizontal members used to connect standards, define the bay length, and support the working platform.

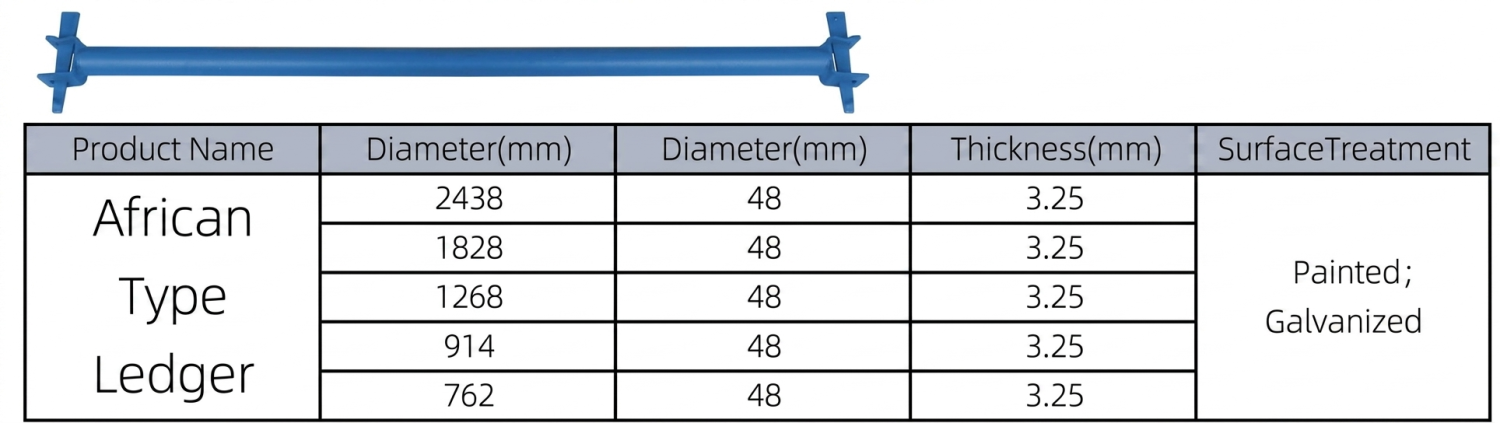

• African Type Ledger Lengths: 762 mm | 914 mm | 1268 mm | 1828 mm | 2438 mm

• Standard Diameter: 48 mm

• Wall Thickness: 3.25 mm

• Finishes: High-durability Painted or Galvanized options for maximum rust protection.

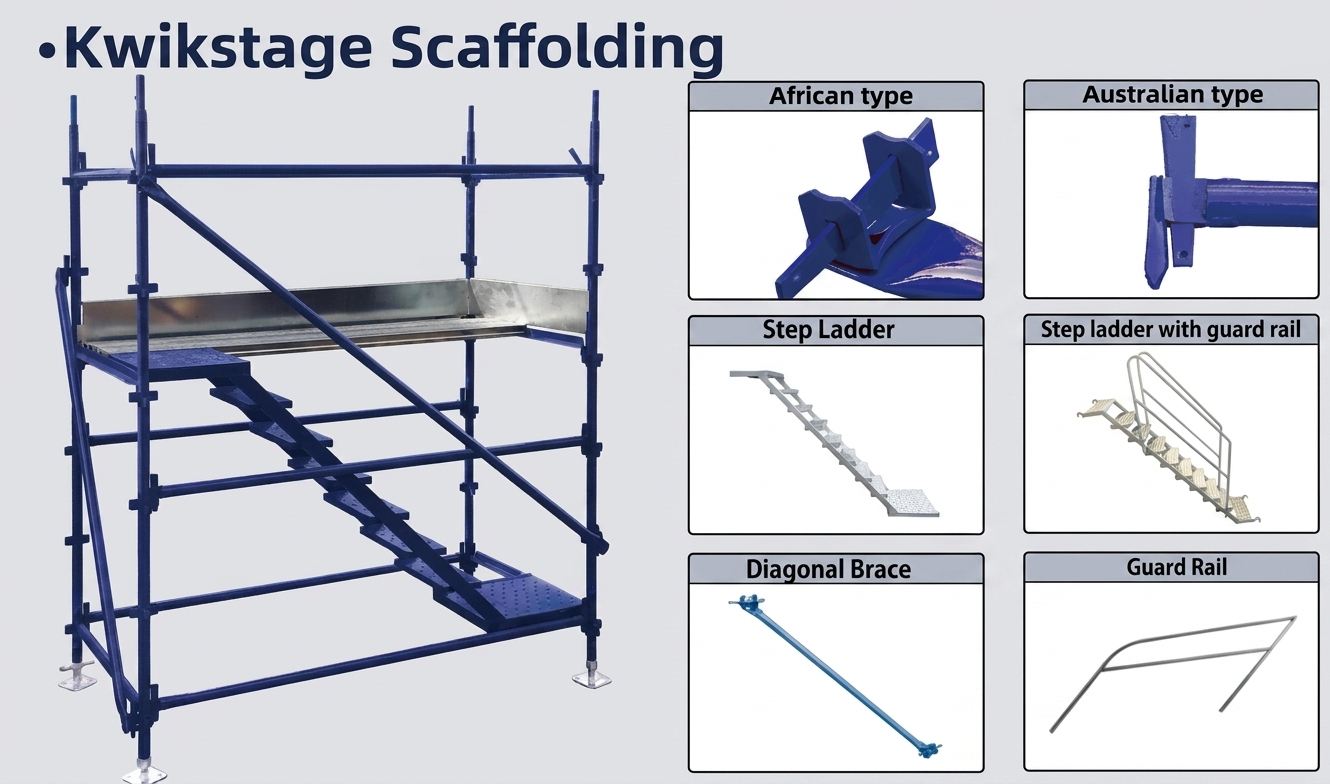

3. System Accessories & Modular Components

• Step Ladder & Guard Rails: Ergonomic modular staircases and dedicated stepladder guard rails allow workers to transition safely between different platform levels.

• Diagonal Braces: High-tensile braces equipped with swivel wedge ends to secure the scaffold against wind and lateral loads.

• Safety Guard Rails: Perimeter edge protection that drops directly into the V-pressings to minimize fall risks.
