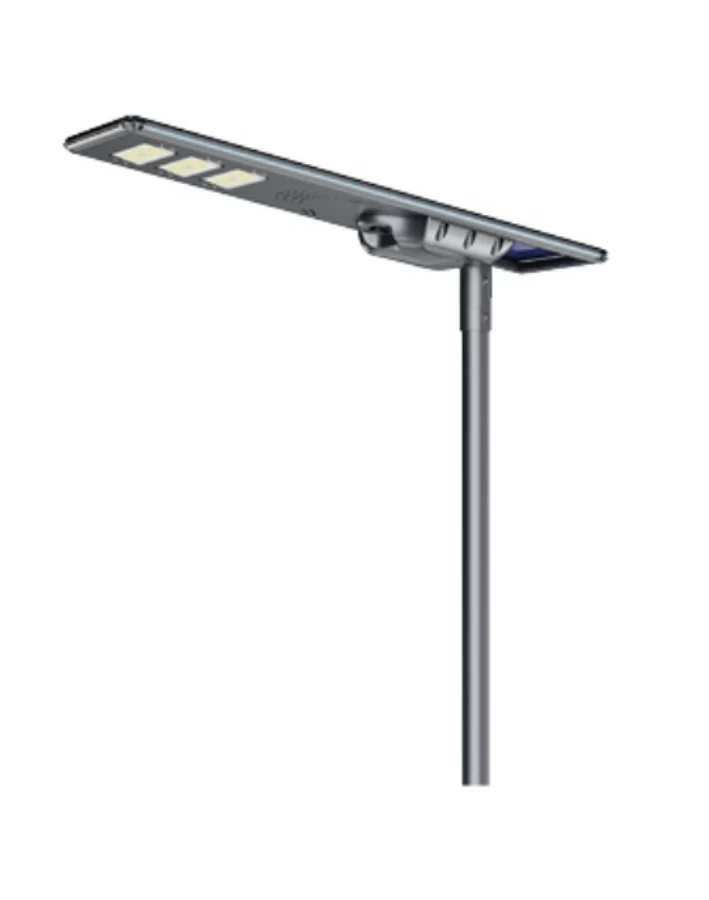

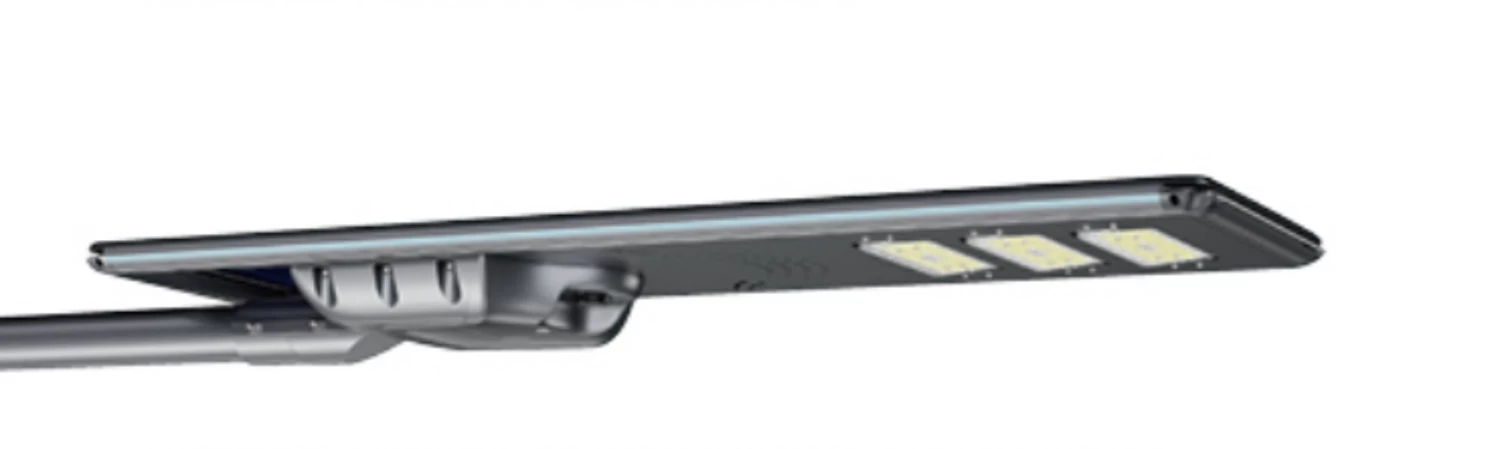

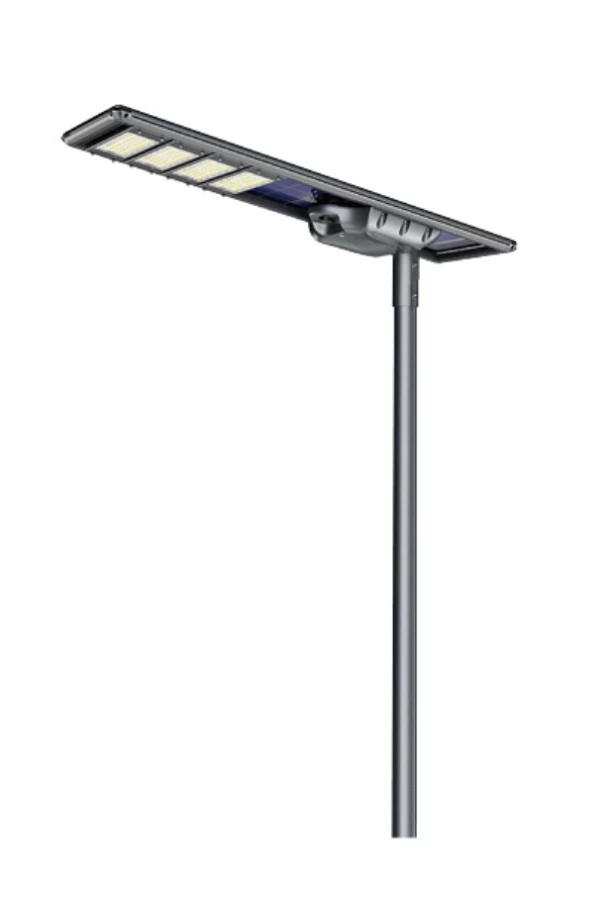

Product Name: Galaxy Integrated Solar LED Street Light
Product Type: Integrated Solar Street Lighting System
Series: Glory Series / Galaxy Series
Light Source: High-Power LED
Power Range: 30W–150W
Solar Panel: Double-Sided Solar Module
Control: Intelligent Controller with PIR / Microwave Motion Sensor
Battery: Deep-Cycle / Lithium Iron Phosphate (LiFePO₄) Battery
Installation: Horizontal or Vertical
Application: Road Lighting / Area Lighting / Perimeter Lighting

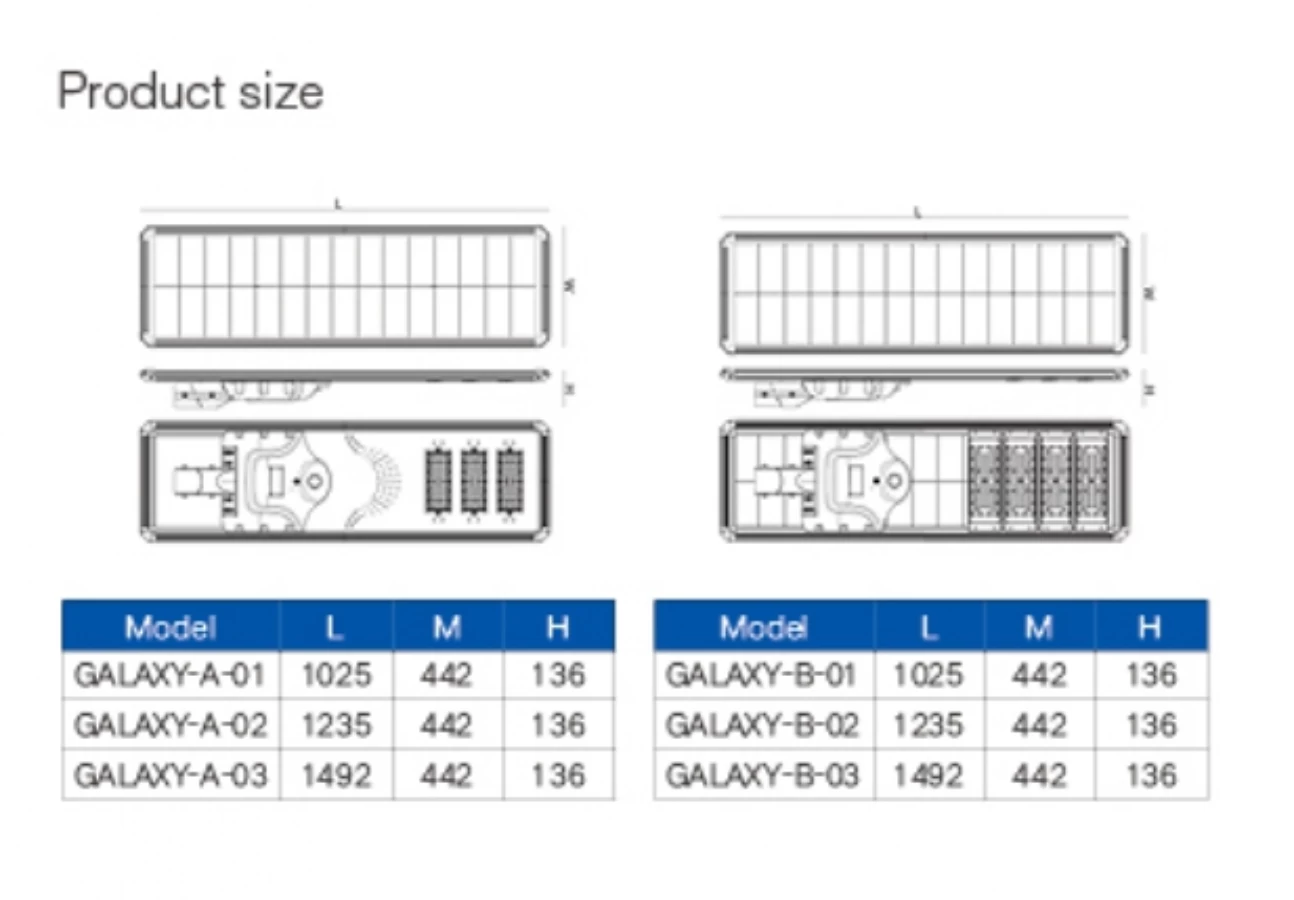

Available Models
| Model | Length (L) | Width (M) | Height (H) |
|---|
| GALAXY-A-01 | 1025 mm | 442 mm | 136 mm |
| GALAXY-A-02 | 1235 mm | 442 mm | 136 mm |
| GALAXY-A-03 | 1492 mm | 442 mm | 136 mm |
| GALAXY-B-01 | 1025 mm | 442 mm | 136 mm |
| GALAXY-B-02 | 1235 mm | 442 mm | 136 mm |
| GALAXY-B-03 | 1492 mm | 442 mm | 136 mm |
Detailed Description

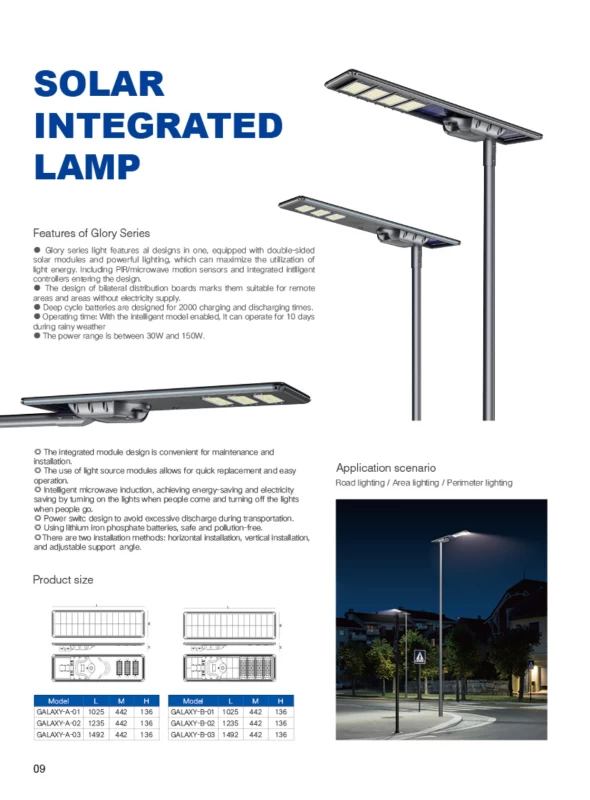

The Galaxy Integrated Solar LED Street Light is an advanced all-in-one solar lighting solution designed for road, area, and perimeter lighting applications. The system integrates the solar module, LED lighting system, battery and intelligent control components into a streamlined fixture, reducing installation complexity and simplifying maintenance.
The Glory Series features double-sided solar modules designed to improve solar energy utilization. The integrated design combines powerful LED lighting with intelligent control technology, including PIR/microwave motion sensing, allowing the lighting system to respond to movement and help optimize energy consumption.
The system uses deep-cycle batteries designed for long-term charging and discharging cycles. A lithium iron phosphate (LiFePO₄) battery option is also available, providing a safe and maintenance-friendly energy-storage solution.
The intelligent model can provide extended operation during periods of reduced sunlight, with the catalog indicating operation for up to 10 days during rainy weather, depending on the configuration and conditions.
The integrated module design makes installation and maintenance more convenient. The LED light-source modules can be replaced separately, helping simplify servicing and reduce maintenance downtime.
The system supports horizontal and vertical installation, with an adjustable support angle to accommodate different installation requirements. A power-switch design helps prevent excessive battery discharge during transportation and storage.
Key Features
-
Integrated solar LED street-light design
-
Double-sided solar modules
-
High-power LED lighting
-
Available power range of 30W–150W
-
Intelligent controller
-
PIR / microwave motion-sensing options
-
Energy-saving intelligent lighting control
-
Deep-cycle battery option
-
LiFePO₄ lithium battery option
-
Integrated design for easier installation and maintenance
-
Replaceable LED light-source modules
-
Horizontal or vertical installation
-
Adjustable installation/support angle
-
Power switch for transportation protection
-
Designed for outdoor road and area lighting
-
Extended rainy-weather operation on intelligent models
Recommended Applications
Road Lighting • Street Lighting • Area Lighting • Perimeter Lighting • Residential Roads • Industrial Areas • Parking Areas • Commercial Complexes • Public Spaces • Rural Roads
Galaxy Integrated Solar LED Street Light is an all-in-one outdoor lighting system combining high-power LED lighting, double-sided solar panels, battery storage and intelligent control technology. Available from 30W to 150W, the system supports PIR/microwave motion sensing, replaceable LED modules, LiFePO₄ battery options and horizontal or vertical installation. Designed for roads, areas, perimeters, parking spaces, residential communities and industrial applications, it provides an energy-efficient and low-maintenance solar lighting solution.
