System Components & Technical Specifications

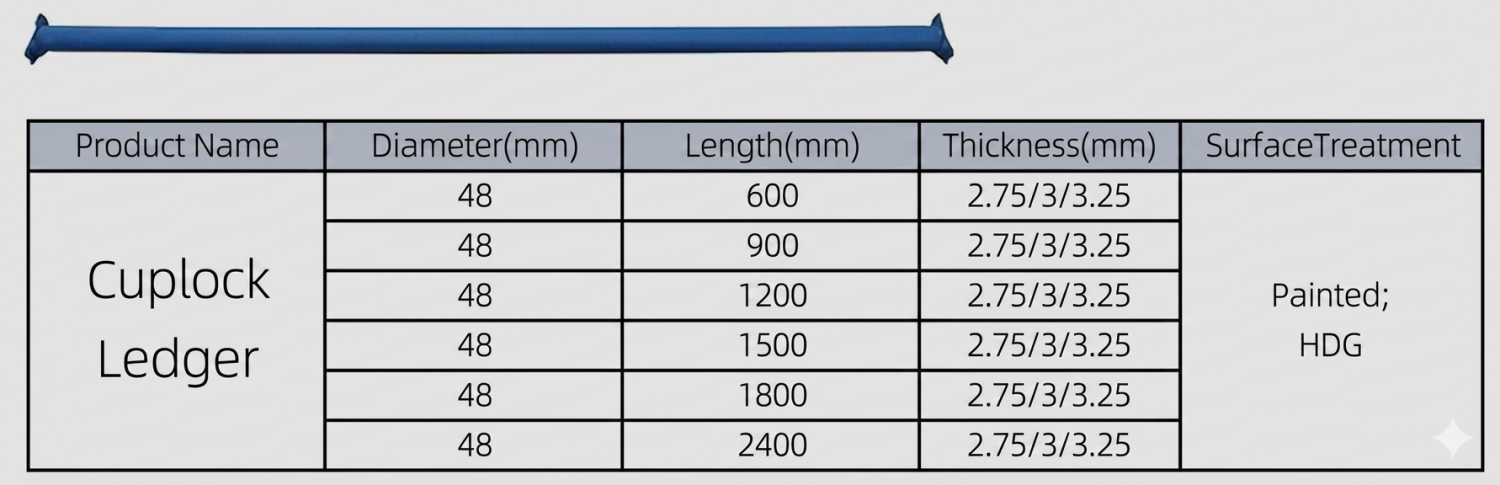

1. Cuplock Ledgers (Horizontals)

Ledgers serve as the horizontal bracing elements of the system, determining the bay length and providing critical structural support.

• Standard Diameter: 48 mm

• Available Lengths: 600 mm | 900 mm | 1200 mm | 1500 mm | 1800 mm | 2400 mm

• Wall Thickness Options: 2.75 mm | 3.0 mm | 3.25 mm

• Finishes: Painted or Hot-Dip Galvanized (HDG)

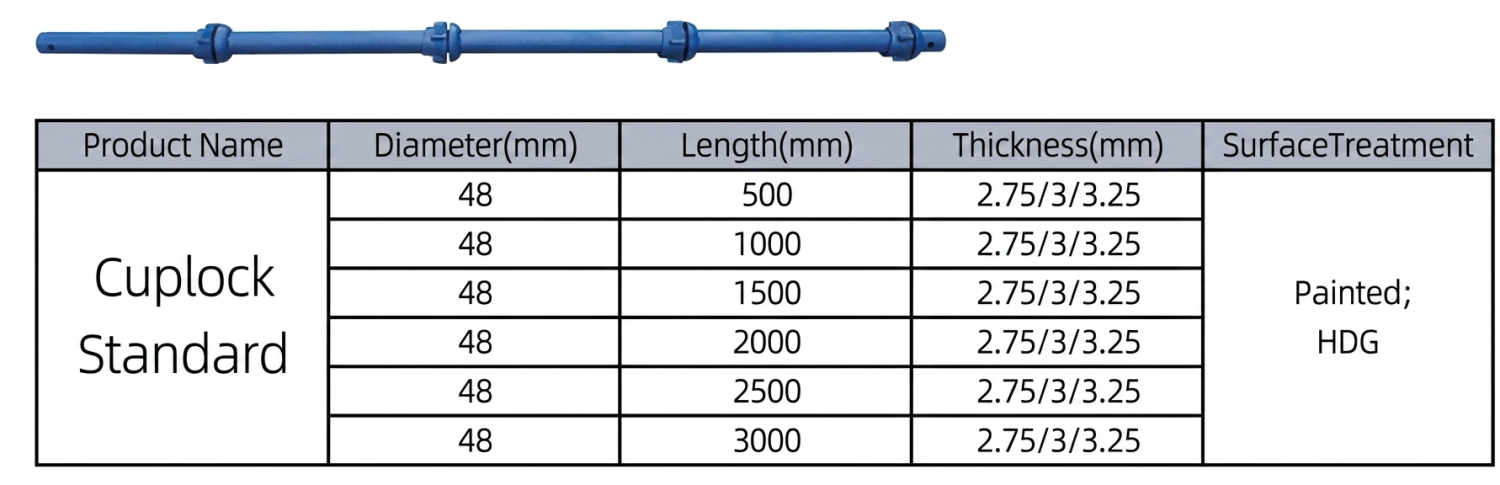

2. Cuplock Standards (Verticals)

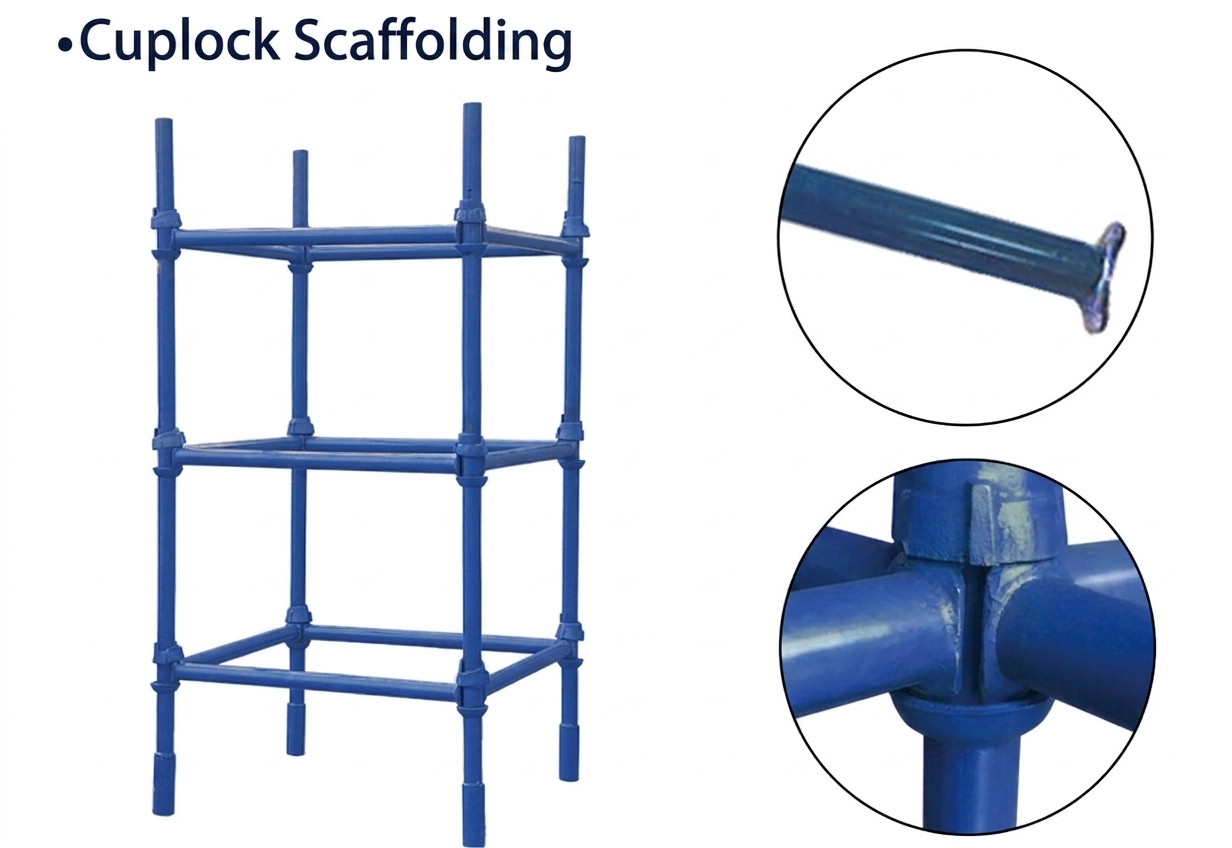

The vertical load-bearing members feature fixed bottom cups welded at precise intervals (typically every 500 mm) and movable top cups that lock the ledgers into place.

• Standard Diameter: 48 mm

• Features: Integrated spigots for easy vertical extension and stacking.

3. System Accessories

• Base Jacks / U-Head Jacks: Adjustable screw jacks to level the scaffold on uneven terrain.

• Diagonal Braces: Provides lateral stability and rigidity to the overall structure.

• Steel Planks / Walkways: Secure, non-slip working platforms that fit seamlessly onto the ledgers.
